NSK NJ424M Cylindrical roller bearing
Also known as : NJ424M
- Inside Diameter: 120 mm
- Outside Diameter: 310 mm
- Width: 72 mm
- Basic dynamic load rating: 675 kN
- Basic static load rating: 770 kN
NSK NJ424M

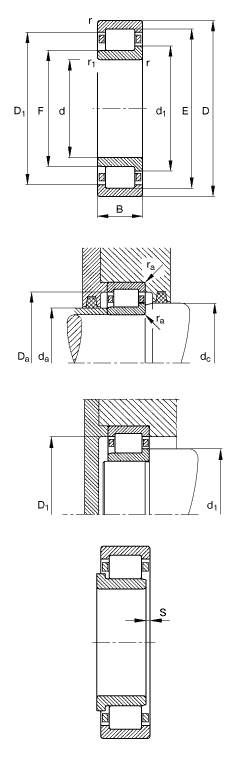

NSK NJ424M details
| model | NJ424M |
|---|---|
| d | 120 mm |
| D | 310 mm |
| B | 72 mm |
| rmin. | 5.0 mm |
| r1 min. | 5.0 mm |
| Fw | 170.0 mm |
| Cr | 675 kN, Basic dynamic Load Ratings |
| C0r | 770 kN, Basic static Load Ratings |
|
Limiting speeds Thermal Reference |
2400 min-1 |
|
Limiting speeds Mechanical |
min-1 |
|
Limiting speeds Grease |
2000 min-1 |
|
Limiting speeds Oil |
2400 min-1 |
| Mass | 30.8 kg (approx.) |
NSK NJ424M bearing cross reference
NN30/500-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3092-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3088-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3084-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3076-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3072-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3064-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3044-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3040-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3034-AS-K-M-SP
120 mmx 310 mmx 72 mm
NN3032-AS-K-M-SP
120 mmx 310 mmx 72 mm
