NSK N224M Cylindrical roller bearing
Also known as : N224M, N224W
- Inside Diameter: 120 mm
- Outside Diameter: 215 mm
- Width: 40 mm
- Basic dynamic load rating: 260 kN
- Basic static load rating: 320 kN
NSK N224M
NSK N224M details

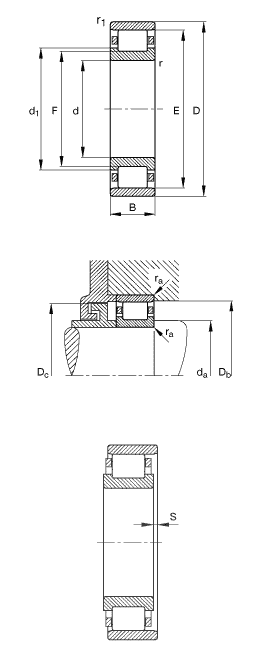

| NSK No. |
N224M N224W |
|---|---|
| d | 120 mm |
| D | 215 mm |
| B | 40 mm |
| rmin. | 2.1 mm |
| r1 min. | 2.1 mm |
| Ew | 191.5 mm |
| Cr | 260 kN, Basic dynamic Load Ratings |
| C0r | 320 kN, Basic static Load Ratings |
|
Limiting speeds Thermal Reference |
4000 min-1 |
|
Limiting speeds Grease |
3000 min-1 |
|
Limiting speeds Oil |
3400 min-1 |
| Mass | 6.22 kg (approx.) |
NSK N224M bearing cross reference
NN30/500-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3092-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3088-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3084-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3076-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3072-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3064-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3044-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3040-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3034-AS-K-M-SP
120 mmx 215 mmx 40 mm
NN3032-AS-K-M-SP
120 mmx 215 mmx 40 mm
