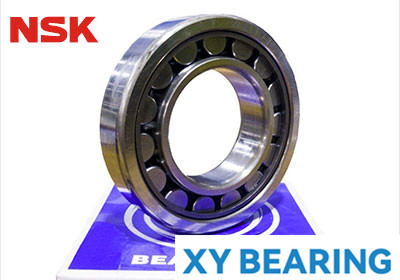

NSK NF415M Cylindrical roller bearing
Also known as : NF415M, NF415
- Inside Diameter: 75 mm
- Outside Diameter: 190 mm
- Width: 45 mm
- Basic dynamic load rating: 262 kN
- Basic static load rating: 274 kN
NSK NF415M
NSK NF415M details

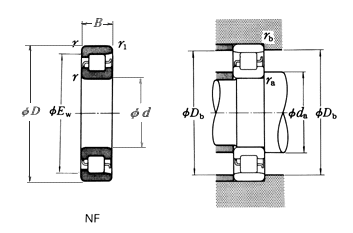

| NSK Numbers | NF415M |
|---|---|
| d | 75 mm |
| D | 190 mm |
| B | 45 mm |
| rmin. | 3.0 mm |
| r1 min. | 3.0 mm |
| Ew | 160.5 mm |
| Cr | 262 kN, Basic dynamic Load Ratings |
| C0r | 274 kN, Basic static Load Ratings |
|
Limiting speeds Thermal Reference |
4300 min-1 |
|
Limiting speeds Grease |
3400 min-1 |
|
Limiting speeds Oil |
4000 min-1 |
| Mass | 7 kg (approx.) |
NSK NF415M bearing cross reference
NN30/500-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3092-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3088-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3084-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3076-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3072-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3064-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3044-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3040-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3034-AS-K-M-SP
75 mmx 190 mmx 45 mm
NN3032-AS-K-M-SP
75 mmx 190 mmx 45 mm
