FAG 3311-BD-XL

FAG 3311-BD-XL Angular contact ball bearings

Also known as : 3311-BD-XL

Inside Diameter: 55 mm
Outside Diameter: 120 mm
Width: 49.2 mm
Basic dynamic load rating: 116 kN
Basic static load rating: 88 kN

FAG 3311-BD-XL

FAG 3311-BD-XL details

Number	3311-BD-XL

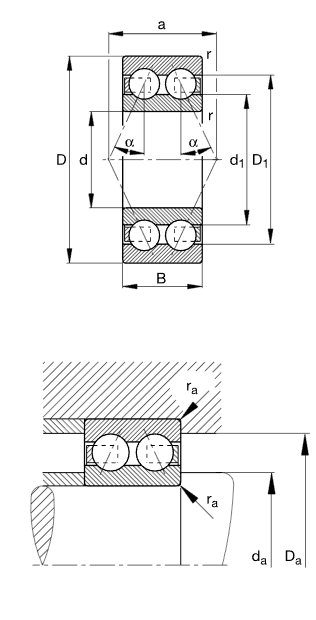

Type	Angular contact ball bearings main dimensions to DIN 628-3, double row, contact angle α = 30°
d	55mm
D	120mm
B	49,2mm
a	71,4mm
D₁	103,3mm
D_{a max}	109mm
d₁	78,8mm
d_{a min}	66mm
r_{a max}	2mm
r_min	2mm
α	30°	Contact angle
m	2,35kg	Mass
C_r	116000N	Basic dynamic load rating, radial
C_0r	88000N	Basic static load rating, radial
C_ur	6000N	Fatigue limit load, radial
n_G	58001/min	Limiting speed
n_ϑr	59001/min	Reference speed
