FAG HSS71907-E-T-P4S Angular contact ball bearings
Also known as : HSS71907-E-T-P4S
- Inside Diameter: 35 mm
- Outside Diameter: 55 mm
- Width: 10 mm
- Basic dynamic load rating: 6.1 kN
- Basic static load rating: 3.6 kN
FAG HSS71907-E-T-P4S

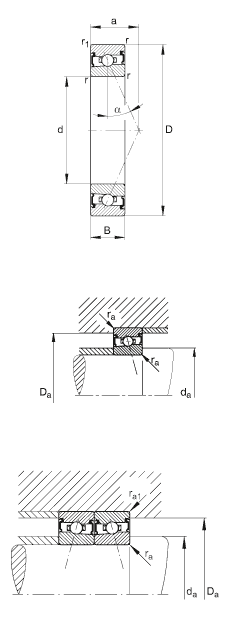

FAG HSS71907-E-T-P4S details
| Number | HSS71907-E-T-P4S | |
|---|---|---|
| Type | FAG spindle bearings adjusted, in pairs or sets, contact angle a = 25°, lip seals on both sides, non-contact, restricted tolerances | |
| d | 35 mm | |
| D | 55 mm | |
| B | 10 mm | |
| a | 15,5 mm | |
| Da | 51,5 mm | Tolerance: H12 |
| da | 40 mm | Tolerance: h12 |
| r1 min | 0,6 mm | |
| ra max | 0,6 mm | |
| ra1 max | 0,15 mm | |
| rmin | 0,6 mm | |
| α | 25 ° | Contact angle |
| m | 0,091 kg | ≈ Mass |
| Cr | 6100 N | Basic dynamic load rating, radial |
| C0r | 3600 N | Basic static load rating, radial |
| Cur | 370 N | Fatigue limit load, radial |
| nG Fett | 32000 1/min | Limiting speed for grease lubrication The limiting speeds are based on elastically preloaded single bearings. |
| FV L | 38 N | Preload force |
| FV M | 113 N | Preload force |
| FV H | 226 N | Preload force |
| KaE L | 109 N | Lift-off force |
| KaE M | 333 N | Lift-off force |
| KaE H | 680 N | Lift-off force |
| ca L | 61 N/µm | Axial rigidity |
| ca M | 91,1 N/µm | Axial rigidity |
| ca H | 119 N/µm | Axial rigidity |
