FAG HS71911-E-T-P4S Angular contact ball bearings
Also known as : HS71911-E-T-P4S
- Inside Diameter: 55 mm
- Outside Diameter: 80 mm
- Width: 13 mm
- Basic dynamic load rating: 12.3 kN
- Basic static load rating: 8 kN
FAG HS71911-E-T-P4S
FAG HS71911-E-T-P4S details

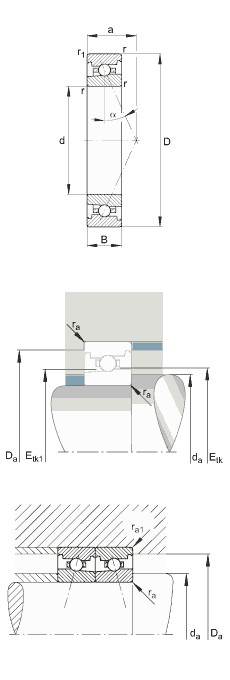

| Number | HS71911-E-T-P4S | |
|---|---|---|
| Type | FAG spindle bearings adjusted, in pairs or sets, contact angle a = 25°, restricted tolerances | |
| d | 55 mm | |
| D | 80 mm | |
| B | 13 mm | |
| a | 22,2 mm | |
| Da | 75,5 mm | Tolerance: H12 |
| da | 60 mm | Tolerance: h12 |
| Etk max | 65,4 mm | |
| Etk min | 64,2 mm | |
| Etk1 max | 65,4 mm | |
| Etk1 min | 62,1 mm | |
| r1 min | 1 mm | |
| ra max | 0,6 mm | |
| ra1 max | 0,3 mm | |
| rmin | 1 mm | |
| α | 25 ° | Contact angle |
| m | 0,186 kg | ≈ Mass |
| Cr | 12300 N | Basic dynamic load rating, radial |
| C0r | 8000 N | Basic static load rating, radial |
| Cur | 830 N | Fatigue limit load, radial |
| nG Fett | 22000 1/min | Limiting speed for grease lubrication The limiting speeds are based on elastically preloaded single bearings. |
| nG Öl | 32000 1/min | Limiting speed for minimal quantity oil lubrication The limiting speeds are based on elastically preloaded single bearings. |
| FV L | 73 N | Preload force |
| FV M | 219 N | Preload force |
| FV H | 438 N | Preload force |
| KaE L | 211 N | Lift-off force |
| KaE M | 645 N | Lift-off force |
| KaE H | 1317 N | Lift-off force |
| ca L | 93,2 N/µm | Axial rigidity |
| ca M | 139 N/µm | Axial rigidity |
| ca H | 181 N/µm | Axial rigidity |
