NSK 7317BDB

NSK 7317BDB Angular contact ball bearings

Also known as : 7317BDB

Inside Diameter: 85 mm
Outside Diameter: 180 mm
Width: 41 mm
Basic dynamic load rating: 236 kN
Basic static load rating: 244 kN

NSK 7317BDB

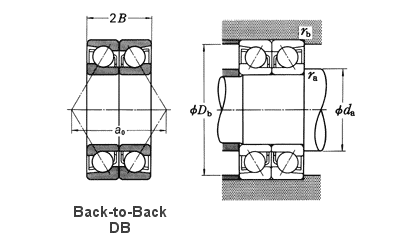

NSK 7317BDB details

model	7317BDB
d	85 mm
D	180 mm
B	41 mm
2B	82 mm
a	152.2 mm
r_min.	3.0 mm
r_{1 min.}	1.10 mm
C_r	236000 N 24100 kgf
C_0r	244000 N 24800 kgf
Limiting speeds	2400 min^-1 (Grease)
Limiting speeds	3200 min^-1 (Oil)
d_a	99.0 mm
D_a	173.0 mm
r_a	2.5 mm
Mass	4.42 kg (approx.)
