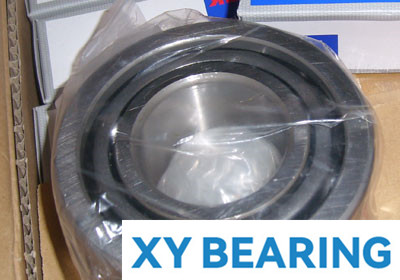

NSK 5302 Angular contact ball bearings
Also known as : 5302, 3302
- Inside Diameter: 15 mm
- Outside Diameter: 42 mm
- Width: 19 mm
- Basic dynamic load rating: 17.6 kN
- Basic static load rating: 10.2 kN
NSK 5302
NSK 5302 details
| model | 5302 |
|---|---|
| d | 15 mm |
| D | 42 mm |
| B | 19.0 mm |
| rmin. | 1.0 mm |
| Cr |
17600 N 1800 kgf |
| C0r |
10200 N 1040 kgf |
| Limiting speeds | 11000 min-1 (Grease) |
| Limiting speeds | 15000 min-1 (Oil) |
| da | 21 mm |
| Da | 36 mm |
| ra | 1.0 mm |
| Mass | 0.11 kg (approx.) |
NSK 5302 bearing cross reference
30/5-B-2Z-TVH
15 mmx 42 mmx 19 mm
3806-B-2RS-TVH
15 mmx 42 mmx 19 mm
3801-B-2RS-TVH
15 mmx 42 mmx 19 mm
3217-B-2RS-TVH
15 mmx 42 mmx 19 mm
3313-BD-XL
15 mmx 42 mmx 19 mm
3311-BD-XL
15 mmx 42 mmx 19 mm
3310-BD-XL-TVH
15 mmx 42 mmx 19 mm
3310-BD-XL
15 mmx 42 mmx 19 mm
3309-BD-XL
15 mmx 42 mmx 19 mm
3307-BD-XL
15 mmx 42 mmx 19 mm
3306-BD-XL
15 mmx 42 mmx 19 mm
