NSK 7017ADF

NSK 7017ADF Angular contact ball bearings

Also known as : 7017ADF

Inside Diameter: 85 mm
Outside Diameter: 130 mm
Width: 22 mm
Basic dynamic load rating: 91.5 kN
Basic static load rating: 112 kN

NSK 7017ADF

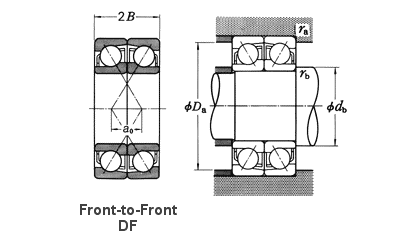

NSK 7017ADF details

model	7017ADF
d	85 mm
D	130 mm
B	22 mm
2B	44 mm
a	40.1 mm
r_min.	1.1 mm
r_{1 min.}	0.60 mm
C_r	91500 N 9350 kgf
C_0r	112000 N 11400 kgf
Limiting speeds	4300 min^-1 (Grease)
Limiting speeds	5600 min^-1 (Oil)
d_a	90.0 mm
D_a	123.0 mm
r_a	1.0 mm
Mass	0.913 kg (approx.)
