SKF 3203 A-2ZTN9/MT33 Angular contact ball bearings
Also known as : 3203 A-2ZTN9/MT33, 5203A-2ZTN9
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 17.5 mm
- Basic dynamic load rating: 14.3 kN
- Basic static load rating: 8.8 kN
SKF 3203 A-2ZTN9/MT33
SKF 3203 A-2ZTN9/MT33 details

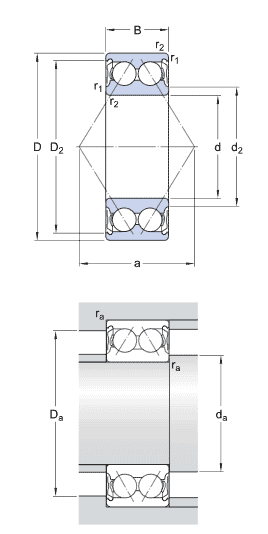

| model | 3203 A-2ZTN9/MT33 |
|---|---|
| d | 17 mm |
| D | 40 mm |
| B | 17.5 mm |
| d2 | 23.3 mm |
| D2 | 34.95 mm |
| a | 23 mm |
| r1,2 min. | 0.6 mm |
| da min | 21.4 mm |
| Da max | 23 mm |
| ra max | 0.6 mm |
| C | 14.3 kN, Basic dynamic load rating |
| C0 | 8.8 kN, Basic static load rating |
| Pu | 0.365 kN, Fatigue load limit |
| Reference speed | 15000 r/min |
| Limiting speed | 16000 r/min |
| kr | 0.06, Calculation factor |
| e | 0.8, Calculation factor |
| X | 0.63, Calculation factor |
| Y0 | 0.66, Calculation factor |
| Y1 | 0.78, Calculation factor |
| Y2 | 1.24, Calculation factor |
| Mass | 0.096 kg |
