INA 3203

INA 3203 Angular contact ball bearings

Also known as : 3203

Inside Diameter: 17 mm
Outside Diameter: 40 mm
Width: 17.5 mm
Basic dynamic load rating: 15.5 kN
Basic static load rating: 9.5 kN

INA 3203

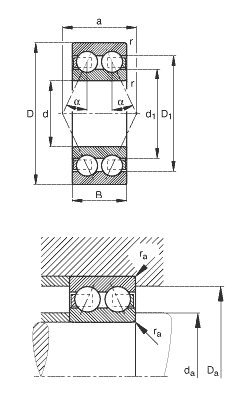

INA 3203 details

d	17 mm
D	40 mm
B	17,5 mm
a	23,501 mm
D₁	33,9 mm
D_{a max}	35,8 mm
d₁	25,8 mm
d_{a min}	21,2 mm
r_{a max}	0,6 mm
r_min	0,6 mm
α	30 °	Contact angle
m	0,094 kg	Mass
C_r	15500 N	Basic dynamic load rating, radial
C_0r	9500 N	Basic static load rating, radial
C_ur	640 N	Fatigue limit load, radial
n_G	19400 1/min	Limiting speed
n_B	16600 1/min	Reference speed
