SKF 7313 BEP Angular contact ball bearings
Also known as : 7313-B-TVP2-XL
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 108 kN
- Basic static load rating: 80 kN
SKF 7313 BEP

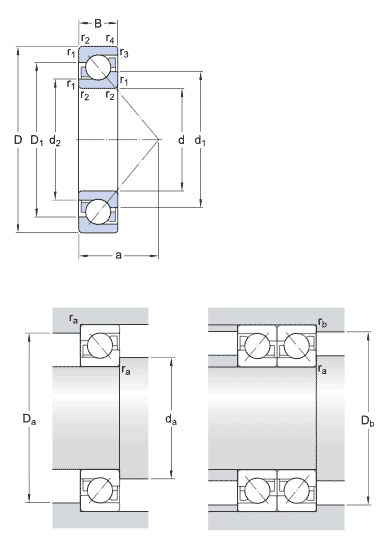

SKF 7313 BEP details
| Part Number | 7313 BEP |
|---|---|
| Brand | SKF |
| Catagory | Angular contact ball bearings, single row |
| d | 65.0 mm, Bore diameter |
| D | 140.0 mm, Outside diameter |
| B | 33.0 mm, Width |
| d1 | 94.15 mm, Shoulder diameter inner ring (large side face) |
| d2 | 78.45 mm, Shoulder diameter inner ring (small side face) |
| D1 | 112.85 mm, Shoulder diameter outer ring (large side face) |
| a | 60.0 mm, Distance pressure point |
| r1,2 min | 2.1 mm, Chamfer dimension |
| r3,4 min | 1.1 mm, Chamfer dimension outer ring small side face |
| ABUTMENT DIMENSIONS | |
| da min | 77.0 mm, Abutment diameter shaft |
| Da max | 128.0 mm, Abutment diameter housing |
| Db max | 133.0 mm, Abutment diameter housing |
| ra max | 2.0 mm, Fillet radius |
| rb max | 1.0 mm, Fillet radius |
| CALCULATION DATA | |
| C | 108.0 kN, Basic dynamic load rating |
| C0 | 80.0 kN, Basic static load rating |
| Pu | 3.35 kN, Fatigue load limit |
| Reference speed | 6000.0 r/min |
| Limiting speed | 5600.0 r/min |
| MASS | |
| Mass bearing | 2.15 kg |
