NSK NBC13909

NSK NBC13909 Thin walled ball bearings

Also known as : NBC13909

Inside Diameter: 139.7 mm
Outside Diameter: 158.75 mm
Width: 9.525 mm
Basic dynamic load rating: 11.5 kN
Basic static load rating: 19.3 kN

NSK NBC13909

NSK NBC13909 details

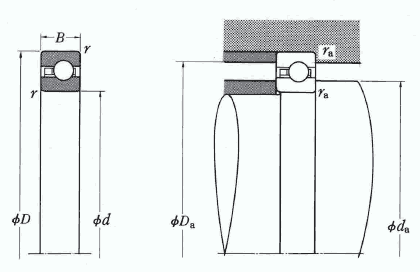

Number	NBC13909
d	139.7 mm
D	158.75 mm
B	9.525 mm
r_min.	1.1 mm
C_r	11.5 KN
C_0r	19.3 KN
d_{a min}	145 mm
D_{a max}	153.5 mm
r_{a max}	1 mm
Mass	0.26 kg (approx.)

NSK NBC13909 bearing cross reference

NBX20325
139.7 mmx 158.75 mmx 9.525 mm

NBX19025
139.7 mmx 158.75 mmx 9.525 mm

NBX17719
139.7 mmx 158.75 mmx 9.525 mm

NBX17709
139.7 mmx 158.75 mmx 9.525 mm

NBX17707
139.7 mmx 158.75 mmx 9.525 mm

NBX17706
139.7 mmx 158.75 mmx 9.525 mm

NBX16525
139.7 mmx 158.75 mmx 9.525 mm

NBX16519
139.7 mmx 158.75 mmx 9.525 mm

NBX16512
139.7 mmx 158.75 mmx 9.525 mm

NBX16509
139.7 mmx 158.75 mmx 9.525 mm

NBX16507
139.7 mmx 158.75 mmx 9.525 mm

NBX15225
139.7 mmx 158.75 mmx 9.525 mm
