NSK NBA15206

NSK NBA15206 Thin walled ball bearings

Also known as : NBA15206

Inside Diameter: 152.4 mm
Outside Diameter: 165 mm
Width: 6.35 mm
Basic dynamic load rating: 6.95 kN
Basic static load rating: 16.1 kN

NSK NBA15206

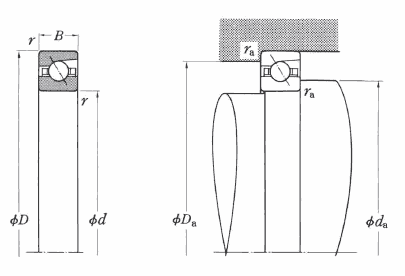

NSK NBA15206 details

Number	NBA15206
d	152.4 mm
D	165 mm
B	6.35 mm
r_min.	0.7 mm
C_r	6.95 KN
C_0r	16.1 KN
d_{a min}	156.5 mm
D_{a max}	161 mm
r_{a max}	0.6 mm
Mass	0.13 kg (approx.)

NSK NBA15206 bearing cross reference

NBX20325
152.4 mmx 165 mmx 6.35 mm

NBX19025
152.4 mmx 165 mmx 6.35 mm

NBX17719
152.4 mmx 165 mmx 6.35 mm

NBX17709
152.4 mmx 165 mmx 6.35 mm

NBX17707
152.4 mmx 165 mmx 6.35 mm

NBX17706
152.4 mmx 165 mmx 6.35 mm

NBX16525
152.4 mmx 165 mmx 6.35 mm

NBX16519
152.4 mmx 165 mmx 6.35 mm

NBX16512
152.4 mmx 165 mmx 6.35 mm

NBX16509
152.4 mmx 165 mmx 6.35 mm

NBX16507
152.4 mmx 165 mmx 6.35 mm

NBX15225
152.4 mmx 165 mmx 6.35 mm
