NSK NB702

NSK NB702 Thin walled ball bearings

Also known as : NB702

Inside Diameter: 15 mm
Outside Diameter: 21 mm
Width: 4 mm
Basic dynamic load rating: 1.15 kN
Basic static load rating: 0.8 kN

NSK NB702

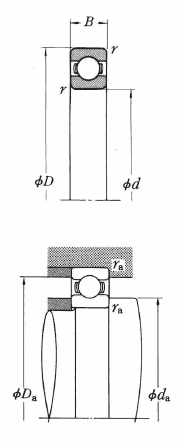

NSK NB702 details

Number	NB702
d	15 mm
D	21 mm
B	4 mm
r_min.	0.2 mm
C_r	1.15 KN
C_0r	0.8 KN
d_{a min}	17 mm
D_{a max}	19 mm
r_{a max}	0.2 mm
Mass	0.004 kg (approx.)

NSK NB702 bearing cross reference

NBX20325
15 mmx 21 mmx 4 mm

NBX19025
15 mmx 21 mmx 4 mm

NBX17719
15 mmx 21 mmx 4 mm

NBX17709
15 mmx 21 mmx 4 mm

NBX17707
15 mmx 21 mmx 4 mm

NBX17706
15 mmx 21 mmx 4 mm

NBX16525
15 mmx 21 mmx 4 mm

NBX16519
15 mmx 21 mmx 4 mm

NBX16512
15 mmx 21 mmx 4 mm

NBX16509
15 mmx 21 mmx 4 mm

NBX16507
15 mmx 21 mmx 4 mm

NBX15225
15 mmx 21 mmx 4 mm
