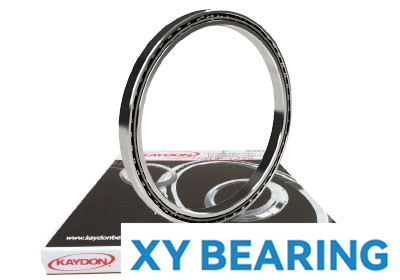

KAYDON SD250AR0 Thin walled ball bearings
Also known as : SD250AR0
- Inside Diameter: 25 inches
- Outside Diameter: 26 inches
- Width: 0.5 inches
- Basic dynamic load rating: 4908 lbs
- Basic static load rating: 20140 lbs
KAYDON SD250AR0
KAYDON SD250AR0 details
| Kaydon part number | SD250AR0 |
|---|---|
| Bore | 25.000 inches |
| Outside dia. | 26.000 inches |
| Width | 0.5 inches |
| Land dia. L1 | 25.370 inches |
| Land dia. L2 | 25.630 inches |
| C'Bore dia. L3 | 25.688 inches |
| Dynamic Kaydon radial | 4,908 lbs |
| Dynamic ISO radial | 7,060 lbs |
| Dynamic Thrust | 13,540 lbs |
| Static Radial | 20,140 lbs |
| Static Thrust | 58,140 lbs |
| Approx. weight | 4.540 lbs |
KAYDON SD250AR0 bearing cross reference
NBX20325
25 inchesx 26 inchesx 0.5 inches
NBX19025
25 inchesx 26 inchesx 0.5 inches
NBX17719
25 inchesx 26 inchesx 0.5 inches
NBX17709
25 inchesx 26 inchesx 0.5 inches
NBX17707
25 inchesx 26 inchesx 0.5 inches
NBX17706
25 inchesx 26 inchesx 0.5 inches
NBX16525
25 inchesx 26 inchesx 0.5 inches
NBX16519
25 inchesx 26 inchesx 0.5 inches
NBX16512
25 inchesx 26 inchesx 0.5 inches
NBX16509
25 inchesx 26 inchesx 0.5 inches
NBX16507
25 inchesx 26 inchesx 0.5 inches
