NSK NBX15212DD

NSK NBX15212DD Thin walled ball bearings

Also known as : NBX15212DD

Inside Diameter: 152.4 mm
Outside Diameter: 171.45 mm
Width: 12.7 mm
Basic dynamic load rating: 10.3 kN
Basic static load rating: 18.3 kN

NSK NBX15212DD

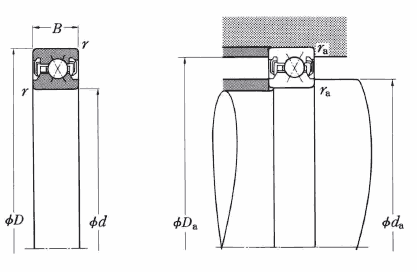

NSK NBX15212DD details

Number	NBX15212DD
d	152.4 mm
D	171.45 mm
B	12.7 mm
r_min.	0.4 mm
C_r	10.3 KN
C_0r	18.3 KN
d_{a min}	155.5 mm
D_{a max}	168 mm
r_{a max}	0.4 mm
Mass	0.37 kg (approx.)

NSK NBX15212DD bearing cross reference

NBX20325
152.4 mmx 171.45 mmx 12.7 mm

NBX19025
152.4 mmx 171.45 mmx 12.7 mm

NBX17719
152.4 mmx 171.45 mmx 12.7 mm

NBX17709
152.4 mmx 171.45 mmx 12.7 mm

NBX17707
152.4 mmx 171.45 mmx 12.7 mm

NBX17706
152.4 mmx 171.45 mmx 12.7 mm

NBX16525
152.4 mmx 171.45 mmx 12.7 mm

NBX16519
152.4 mmx 171.45 mmx 12.7 mm

NBX16512
152.4 mmx 171.45 mmx 12.7 mm

NBX16509
152.4 mmx 171.45 mmx 12.7 mm

NBX16507
152.4 mmx 171.45 mmx 12.7 mm

NBX15225
152.4 mmx 171.45 mmx 12.7 mm
