NSK NBX10112DD

NSK NBX10112DD Thin walled ball bearings

Also known as : NBX10112DD

Inside Diameter: 101.6 mm
Outside Diameter: 120.65 mm
Width: 12.7 mm
Basic dynamic load rating: 8.95 kN
Basic static load rating: 12.4 kN

NSK NBX10112DD

NSK NBX10112DD details

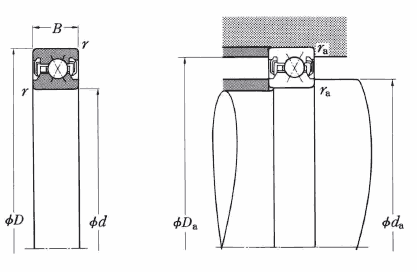

Number	NBX10112DD
d	101.6 mm
D	120.65 mm
B	12.7 mm
r_min.	0.4 mm
C_r	8.95 KN
C_0r	12.4 KN
d_{a min}	105 mm
D_{a max}	117.5 mm
r_{a max}	0.4 mm
Mass	0.24 kg (approx.)

NSK NBX10112DD bearing cross reference

NBX20325
101.6 mmx 120.65 mmx 12.7 mm

NBX19025
101.6 mmx 120.65 mmx 12.7 mm

NBX17719
101.6 mmx 120.65 mmx 12.7 mm

NBX17709
101.6 mmx 120.65 mmx 12.7 mm

NBX17707
101.6 mmx 120.65 mmx 12.7 mm

NBX17706
101.6 mmx 120.65 mmx 12.7 mm

NBX16525
101.6 mmx 120.65 mmx 12.7 mm

NBX16519
101.6 mmx 120.65 mmx 12.7 mm

NBX16512
101.6 mmx 120.65 mmx 12.7 mm

NBX16509
101.6 mmx 120.65 mmx 12.7 mm

NBX16507
101.6 mmx 120.65 mmx 12.7 mm

NBX15225
101.6 mmx 120.65 mmx 12.7 mm
