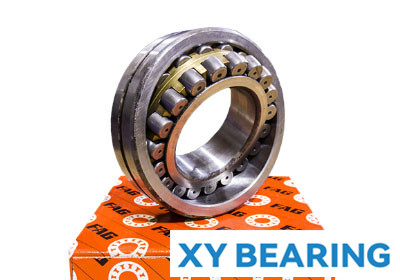

FAG 24196-BEA-XL-K30-MB1 Self-aligning roller bearing
Also known as : 24196-BEA-XL-K30-MB1
- Inside Diameter: 480 mm
- Outside Diameter: 790 mm
- Width: 308 mm
- Basic dynamic load rating: 9000 kN
- Basic static load rating: 15500 kN
FAG 24196-BEA-XL-K30-MB1

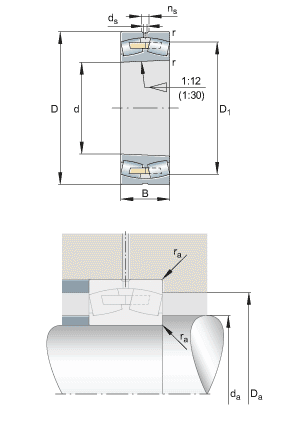

FAG 24196-BEA-XL-K30-MB1 details
| Number | 24196-BEA-XL-K30-MB1 | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 480 mm | |
| D | 790 mm | |
| B | 308 mm | |
| D1 | 673,14 mm | |
| Da max | 758 mm | |
| da min | 512 mm | |
| ds | 12,5 mm | |
| ns | 23,5 mm | |
| ra max | 6 mm | |
| rmin | 7,5 mm | |
| m | 594 kg | Mass |
| Cr | 9000000 N | Basic dynamic load rating, radial |
| C0r | 15500000 N | Basic static load rating, radial |
| nG | 640 1/min | Limiting speed |
| Cur | 1070000 N | Fatigue limit load, radial |
| nB | 227 1/min | Reference speed |
| e | 0,38 | |
| Y1 | 1,79 | |
| Y2 | 2,67 | |
| Y0 | 1,75 |
FAG 24196-BEA-XL-K30-MB1 bearing cross reference
24068EMD1
480 mmx 790 mmx 308 mm
232/560B
480 mmx 790 mmx 308 mm
241/560B
480 mmx 790 mmx 308 mm
231/560B
480 mmx 790 mmx 308 mm
23992
480 mmx 790 mmx 308 mm
23996
480 mmx 790 mmx 308 mm
240/560B
480 mmx 790 mmx 308 mm
232/530B
480 mmx 790 mmx 308 mm
23092B
480 mmx 790 mmx 308 mm
23096B
480 mmx 790 mmx 308 mm
230/560B
480 mmx 790 mmx 308 mm
