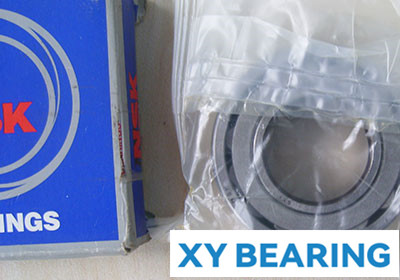

NSK 24124CE4 Self-aligning roller bearing
Also known as : 24124CE4
- Inside Diameter: 120 mm
- Outside Diameter: 200 mm
- Width: 80 mm
- Basic dynamic load rating: 575 kN
- Basic static load rating: 954 kN
NSK 24124CE4
NSK 24124CE4 details
| Bearing number | 24124CE4 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 120 mm |
| D | 200 mm |
| B | 80.0 mm |
| rmin. | 2.0 mm |
| Cr |
575000 N 58500 kgf |
| C0r |
954000 N 96500 kgf |
| Limiting speeds | 1400 min-1 (Grease) |
| Limiting speeds | 1800 min-1 (Oil) |
| da min | 130 mm |
| da max | 136.000 mm |
| Da max | 190 mm |
| Da min | 171 mm |
| ra | 2.0 mm |
| Constant | 0.37 |
| Y2 | 2.7 Axial Load Factors |
| Y3 | 1.8 Axial Load Factors |
| Y0 | 1.8 Axial Load Factors |
| Mass | 10.00 kg (approx.) |
NSK 24124CE4 bearing cross reference
24068EMD1
120 mmx 200 mmx 80 mm
232/560B
120 mmx 200 mmx 80 mm
241/560B
120 mmx 200 mmx 80 mm
231/560B
120 mmx 200 mmx 80 mm
23992
120 mmx 200 mmx 80 mm
23996
120 mmx 200 mmx 80 mm
240/560B
120 mmx 200 mmx 80 mm
232/530B
120 mmx 200 mmx 80 mm
23092B
120 mmx 200 mmx 80 mm
23096B
120 mmx 200 mmx 80 mm
230/560B
120 mmx 200 mmx 80 mm
