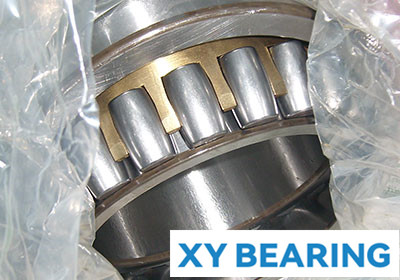

NSK 24096CAE4 Self-aligning roller bearing
Also known as : 24096CAE4
- Inside Diameter: 480 mm
- Outside Diameter: 700 mm
- Width: 218 mm
- Basic dynamic load rating: 4600 kN
- Basic static load rating: 10200 kN
NSK 24096CAE4

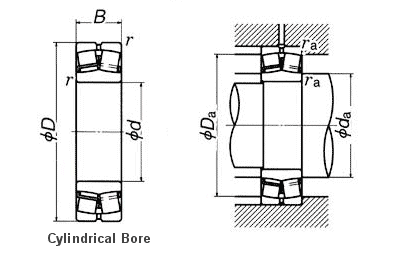

NSK 24096CAE4 details
| Bearing number | 24096CAE4 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 480 mm |
| D | 700 mm |
| B | 218.0 mm |
| rmin. | 6.0 mm |
| Cr |
4600000 N 470000 kgf |
| C0r |
10200000 N 1040000 kgf |
| Limiting speeds | 320 min-1 (Grease) |
| Limiting speeds | 430 min-1 (Oil) |
| da min | 508 mm |
| da max | 0.000 mm |
| Da max | 672 mm |
| Da min | 625 mm |
| ra | 5.0 mm |
| Constant | 0.3 |
| Y2 | 3.4 Axial Load Factors |
| Y3 | 2.3 Axial Load Factors |
| Y0 | 2.2 Axial Load Factors |
| Mass | 270.00 kg (approx.) |
NSK 24096CAE4 bearing cross reference
24068EMD1
480 mmx 700 mmx 218 mm
232/560B
480 mmx 700 mmx 218 mm
241/560B
480 mmx 700 mmx 218 mm
231/560B
480 mmx 700 mmx 218 mm
23992
480 mmx 700 mmx 218 mm
23996
480 mmx 700 mmx 218 mm
240/560B
480 mmx 700 mmx 218 mm
232/530B
480 mmx 700 mmx 218 mm
23092B
480 mmx 700 mmx 218 mm
23096B
480 mmx 700 mmx 218 mm
230/560B
480 mmx 700 mmx 218 mm
