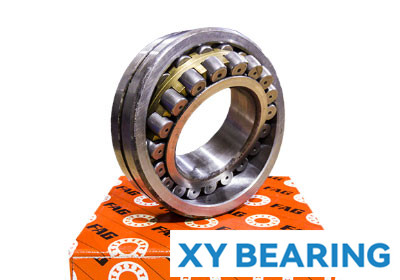

FAG 240/500-BEA-XL-K30-MB1 Self-aligning roller bearing
Also known as : 240/500-BEA-XL-K30-MB1
- Inside Diameter: 500 mm
- Outside Diameter: 720 mm
- Width: 218 mm
- Basic dynamic load rating: 5700 kN
- Basic static load rating: 11100 kN
FAG 240/500-BEA-XL-K30-MB1
FAG 240/500-BEA-XL-K30-MB1 details
| Number | 240/500-BEA-XL-K30-MB1 | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 500 mm | |
| D | 720 mm | |
| B | 218 mm | |
| D1 | 647,3 mm | |
| Da max | 697 mm | |
| da min | 523 mm | |
| ds | 12,5 mm | |
| ns | 23,5 mm | |
| ra max | 5 mm | |
| rmin | 6 mm | |
| m | 289 kg | Mass |
| Cr | 5700000 N | Basic dynamic load rating, radial |
| C0r | 11100000 N | Basic static load rating, radial |
| nG | 750 1/min | Limiting speed |
| Cur | 900000 N | Fatigue limit load, radial |
| nB | 370 1/min | Reference speed |
| e | 0,27 | |
| Y1 | 2,51 | |
| Y2 | 3,74 | |
| Y0 | 2,45 |
FAG 240/500-BEA-XL-K30-MB1 bearing cross reference
24068EMD1
500 mmx 720 mmx 218 mm
232/560B
500 mmx 720 mmx 218 mm
241/560B
500 mmx 720 mmx 218 mm
231/560B
500 mmx 720 mmx 218 mm
23992
500 mmx 720 mmx 218 mm
23996
500 mmx 720 mmx 218 mm
240/560B
500 mmx 720 mmx 218 mm
232/530B
500 mmx 720 mmx 218 mm
23092B
500 mmx 720 mmx 218 mm
23096B
500 mmx 720 mmx 218 mm
230/560B
500 mmx 720 mmx 218 mm
