NSK 24028CK30E4 Self-aligning roller bearing
Also known as : 24028CK30E4
- Inside Diameter: 140 mm
- Outside Diameter: 210 mm
- Width: 69 mm
- Basic dynamic load rating: 525 kN
- Basic static load rating: 945 kN
NSK 24028CK30E4
NSK 24028CK30E4 details
| Bearing number | 24028CK30E4 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 140 mm |
| D | 210 mm |
| B | 69.0 mm |
| rmin. | 2.0 mm |
| Cr |
525000 N 53500 kgf |
| C0r |
945000 N 96500 kgf |
| Limiting speeds | 1300 min-1 (Grease) |
| Limiting speeds | 1700 min-1 (Oil) |

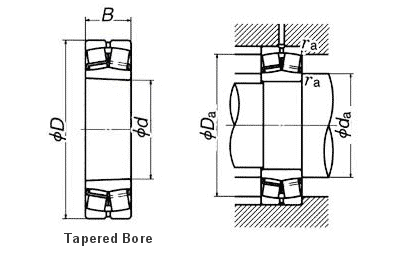

| da min | 150 mm |
| da max | 154 mm |
| Da max | 200 mm |
| Da min | 186 mm |
| ra | 2.0 mm |
| Constant | 0.29 |
| Y2 | 3.4 Axial Load Factors |
| Y3 | 2.3 Axial Load Factors |
| Y0 | 2.2 Axial Load Factors |
| Mass | 8.37 kg (approx.) |
NSK 24028CK30E4 bearing cross reference
24068EMD1
140 mmx 210 mmx 69 mm
232/560B
140 mmx 210 mmx 69 mm
241/560B
140 mmx 210 mmx 69 mm
231/560B
140 mmx 210 mmx 69 mm
23992
140 mmx 210 mmx 69 mm
23996
140 mmx 210 mmx 69 mm
240/560B
140 mmx 210 mmx 69 mm
232/530B
140 mmx 210 mmx 69 mm
23092B
140 mmx 210 mmx 69 mm
23096B
140 mmx 210 mmx 69 mm
230/560B
140 mmx 210 mmx 69 mm
