FAG 23276-BEA-XL-K-MB1 Self-aligning roller bearing
Also known as : 23276-BEA-XL-K-MB1
- Inside Diameter: 380 mm
- Outside Diameter: 680 mm
- Width: 240 mm
- Basic dynamic load rating: 6200 kN
- Basic static load rating: 9600 kN
FAG 23276-BEA-XL-K-MB1
FAG 23276-BEA-XL-K-MB1 details

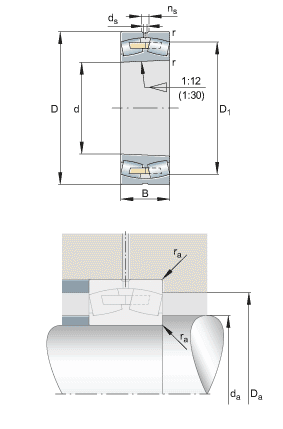

| Number | 23276-BEA-XL-K-MB1 | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 380 mm | |
| D | 680 mm | |
| B | 240 mm | |
| D1 | 578,1 mm | |
| Da max | 654 mm | |
| da min | 406 mm | |
| ds | 12,5 mm | |
| ns | 23,5 mm | |
| ra max | 5 mm | |
| rmin | 6 mm | |
| m | 374 kg | Mass |
| Cr | 6200000 N | Basic dynamic load rating, radial |
| C0r | 9600000 N | Basic static load rating, radial |
| nG | 890 1/min | Limiting speed |
| Cur | 660000 N | Fatigue limit load, radial |
| nB | 400 1/min | Reference speed |
| e | 0,35 | |
| Y1 | 1,92 | |
| Y2 | 2,86 | |
| Y0 | 1,88 |
FAG 23276-BEA-XL-K-MB1 bearing cross reference
24068EMD1
380 mmx 680 mmx 240 mm
232/560B
380 mmx 680 mmx 240 mm
241/560B
380 mmx 680 mmx 240 mm
231/560B
380 mmx 680 mmx 240 mm
23992
380 mmx 680 mmx 240 mm
23996
380 mmx 680 mmx 240 mm
240/560B
380 mmx 680 mmx 240 mm
232/530B
380 mmx 680 mmx 240 mm
23092B
380 mmx 680 mmx 240 mm
23096B
380 mmx 680 mmx 240 mm
230/560B
380 mmx 680 mmx 240 mm
