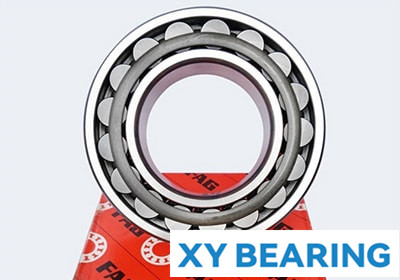

FAG 22332-BE-XL-K Self-aligning roller bearing
Also known as : 22332-BE-XL-K
- Inside Diameter: 160 mm
- Outside Diameter: 340 mm
- Width: 114 mm
- Basic dynamic load rating: 1680 kN
- Basic static load rating: 1990 kN
FAG 22332-BE-XL-K

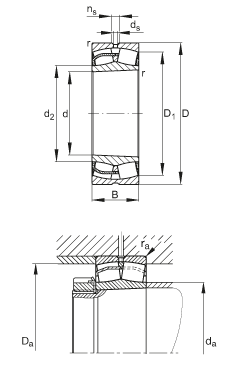

FAG 22332-BE-XL-K details
| Number | 22332-BE-XL-K | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 160 mm | |
| D | 340 mm | |
| B | 114 mm | |
| D1 | 286,7 mm | |
| Da max | 323 mm | |
| d2 | 201,2 mm | |
| da min | 177 mm | |
| ds | 9,5 mm | |
| ns | 17,7 mm | |
| ra max | 3 mm | |
| rmin | 4 mm | |
| m | 47,3 kg | Mass |
| Cr | 1680000 N | Basic dynamic load rating, radial |
| C0r | 1990000 N | Basic static load rating, radial |
| Cur | 157000 N | Fatigue limit load, radial |
| nG | 2250 1/min | Limiting speed |
| nB | 1420 1/min | Reference speed |
| e | 0,35 | |
| Y1 | 1,94 | |
| Y2 | 2,88 | |
| Y0 | 1,89 |
