FAG 239SM560-MA Self-aligning roller bearing
Also known as : 239SM560-MA
- Inside Diameter: 560 mm
- Outside Diameter: 800 mm
- Width: 150 mm
- Basic dynamic load rating: 2950 kN
- Basic static load rating: 7000 kN
FAG 239SM560-MA
FAG 239SM560-MA details
| Number | 239SM560-MA | |
|---|---|---|
| Type |
Split spherical roller bearings split spherical roller bearings |
|

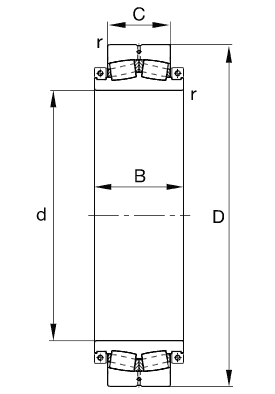

| d | 560mm | |
| D | 800mm | |
| C | 150mm | |
| B | 235mm | |
| rmin | 5mm | |
| m | 356kg | Mass |
| Cr | 2950000N | Basic dynamic load rating, radial |
| C0r | 7000000N | Basic static load rating, radial |
| Cur | 540000N | Fatigue limit load, radial |
| nG | 3051/min | Limiting speed |
| e | 0,17 | |
| Y1 | 3,95 | |
| Y2 | 5,88 | |
| Y0 | 3,86 | |
| Fa max | 60500N | Permissible axial load, for inner ring without axial abutment |
| Mi | 295Nm | Tightening torque per clamping screw |
| Ma | 69Nm | Tightening torque per clamping screw |
| 239/600K | Designation, spherical roller bearing, unsplit | |
| H39/600-HG | Designation, adapter sleeve |
FAG 239SM560-MA bearing cross reference
24068EMD1
560 mmx 800 mmx 150 mm
232/560B
560 mmx 800 mmx 150 mm
241/560B
560 mmx 800 mmx 150 mm
231/560B
560 mmx 800 mmx 150 mm
23992
560 mmx 800 mmx 150 mm
23996
560 mmx 800 mmx 150 mm
240/560B
560 mmx 800 mmx 150 mm
232/530B
560 mmx 800 mmx 150 mm
23092B
560 mmx 800 mmx 150 mm
23096B
560 mmx 800 mmx 150 mm
230/560B
560 mmx 800 mmx 150 mm
