FAG 239SM530-MA Self-aligning roller bearing
Also known as : 239SM530-MA
- Inside Diameter: 530 mm
- Outside Diameter: 750 mm
- Width: 140 mm
- Basic dynamic load rating: 2750 kN
- Basic static load rating: 6500 kN
FAG 239SM530-MA
FAG 239SM530-MA details
| Number | 239SM530-MA | |
|---|---|---|
| Type |
Split spherical roller bearings split spherical roller bearings |
|

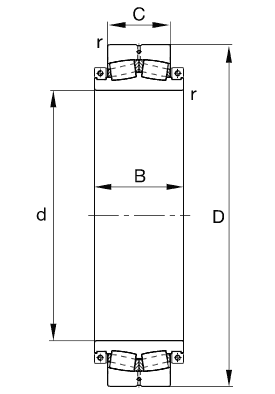

| d | 530mm | |
| D | 750mm | |
| C | 140mm | |
| B | 225mm | |
| rmin | 5mm | |
| m | 293kg | Mass |
| Cr | 2750000N | Basic dynamic load rating, radial |
| C0r | 6500000N | Basic static load rating, radial |
| Cur | 375000N | Fatigue limit load, radial |
| nG | 3251/min | Limiting speed |
| e | 0,18 | |
| Y1 | 3,85 | |
| Y2 | 5,73 | |
| Y0 | 3,76 | |
| Fa max | 60500N | Permissible axial load, for inner ring without axial abutment |
| Mi | 295Nm | Tightening torque per clamping screw |
| Ma | 69Nm | Tightening torque per clamping screw |
| 239/560K | Designation, spherical roller bearing, unsplit | |
| H39/560-HG | Designation, adapter sleeve |
FAG 239SM530-MA bearing cross reference
24068EMD1
530 mmx 750 mmx 140 mm
232/560B
530 mmx 750 mmx 140 mm
241/560B
530 mmx 750 mmx 140 mm
231/560B
530 mmx 750 mmx 140 mm
23992
530 mmx 750 mmx 140 mm
23996
530 mmx 750 mmx 140 mm
240/560B
530 mmx 750 mmx 140 mm
232/530B
530 mmx 750 mmx 140 mm
23092B
530 mmx 750 mmx 140 mm
23096B
530 mmx 750 mmx 140 mm
230/560B
530 mmx 750 mmx 140 mm
