FAG 230SM110-MA Self-aligning roller bearing
Also known as : 230SM110-MA
- Inside Diameter: 110 mm
- Outside Diameter: 180 mm
- Width: 46 mm
- Basic dynamic load rating: 270 kN
- Basic static load rating: 385 kN
FAG 230SM110-MA
FAG 230SM110-MA details
| Number | 230SM110-MA | |
|---|---|---|
| Type |
Split spherical roller bearings split spherical roller bearings |
|

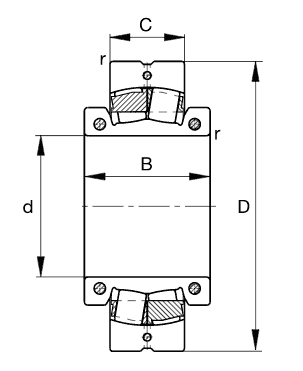

| d | 110mm | |
| D | 180mm | |
| C | 46mm | |
| B | 86mm | |
| rmin | 2mm | |
| m | 7,1kg | Mass |
| Cr | 270000N | Basic dynamic load rating, radial |
| C0r | 385000N | Basic static load rating, radial |
| Cur | 30500N | Fatigue limit load, radial |
| nG | 14601/min | Limiting speed |
| e | 0,23 | |
| Y1 | 2,9 | |
| Y2 | 4,31 | |
| Y0 | 2,83 | |
| Fa max | 7600N | Permissible axial load, for inner ring without axial abutment |
| Mi | 14Nm | Tightening torque per clamping screw |
| Ma | 4Nm | Tightening torque per clamping screw |
| 23024K | Designation, spherical roller bearing, unsplit | |
| H3024 | Designation, adapter sleeve | |
| S3024-H | Designation, plummer block housing |
