FAG 24038-BE-XL-2VSR Self-aligning roller bearing
Also known as : 24038-BE-XL-2VSR
- Inside Diameter: 190 mm
- Outside Diameter: 290 mm
- Width: 100 mm
- Basic dynamic load rating: 1160 kN
- Basic static load rating: 1860 kN
FAG 24038-BE-XL-2VSR
FAG 24038-BE-XL-2VSR details
| Number | 24038-BE-XL-2VSR | |
|---|---|---|
| Type |
Sealed spherical roller bearings lip seals on both sides, for continuous casting machines |
|

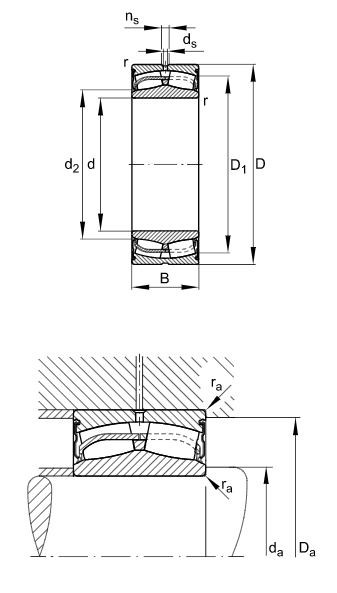

| d | 190mm | |
| D | 290mm | |
| B | 100mm | |
| D1 | 271,1mm | |
| Da max | 279,8mm | |
| d2 | 206,2mm | |
| da min | 200,2mm | |
| ds | 4,8mm | |
| ns | 9,5mm | |
| ra max | 2,1mm | |
| rmin | 2,1mm | |
| m | 23,7kg | Mass |
| Cr | 1160000N | Basic dynamic load rating, radial |
| C0r | 1860000N | Basic static load rating, radial |
| Cur | 197000N | Fatigue limit load, radial |
| nG | 5401/min | Limiting speed |
| e | 0,31 | |
| Y1 | 2,2 | |
| Y2 | 3,27 | |
| Y0 | 2,15 |
