FAG 24028-BE-XL-2VSR Self-aligning roller bearing
Also known as : 24028-BE-XL-2VSR
- Inside Diameter: 140 mm
- Outside Diameter: 210 mm
- Width: 69 mm
- Basic dynamic load rating: 590 kN
- Basic static load rating: 930 kN
FAG 24028-BE-XL-2VSR
FAG 24028-BE-XL-2VSR details
| Number | 24028-BE-XL-2VSR | |
|---|---|---|
| Type |
Sealed spherical roller bearings lip seals on both sides, for continuous casting machines |
|

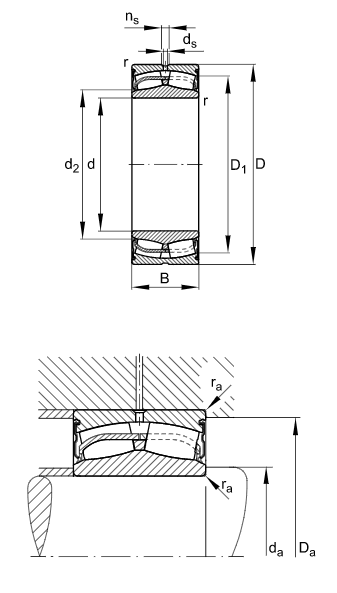

| d | 140mm | |
| D | 210mm | |
| B | 69mm | |
| D1 | 198,5mm | |
| Da max | 201,2mm | |
| d2 | 153,3mm | |
| da min | 148,8mm | |
| ds | 3,2mm | |
| ns | 6,5mm | |
| ra max | 2mm | |
| rmin | 2mm | |
| m | 8,4kg | Mass |
| Cr | 590000N | Basic dynamic load rating, radial |
| C0r | 930000N | Basic static load rating, radial |
| Cur | 111000N | Fatigue limit load, radial |
| nG | 7401/min | Limiting speed |
| e | 0,28 | |
| Y1 | 2,37 | |
| Y2 | 3,53 | |
| Y0 | 2,32 |
FAG 24028-BE-XL-2VSR bearing cross reference
24068EMD1
140 mmx 210 mmx 69 mm
232/560B
140 mmx 210 mmx 69 mm
241/560B
140 mmx 210 mmx 69 mm
231/560B
140 mmx 210 mmx 69 mm
23992
140 mmx 210 mmx 69 mm
23996
140 mmx 210 mmx 69 mm
240/560B
140 mmx 210 mmx 69 mm
232/530B
140 mmx 210 mmx 69 mm
23092B
140 mmx 210 mmx 69 mm
23096B
140 mmx 210 mmx 69 mm
230/560B
140 mmx 210 mmx 69 mm
