FAG 22232-E1A-XL-2RSR-M Self-aligning roller bearing
Also known as : 22232-E1A-XL-2RSR-M
- Inside Diameter: 160 mm
- Outside Diameter: 290 mm
- Width: 80 mm
- Basic dynamic load rating: 1080 kN
- Basic static load rating: 1300 kN
FAG 22232-E1A-XL-2RSR-M

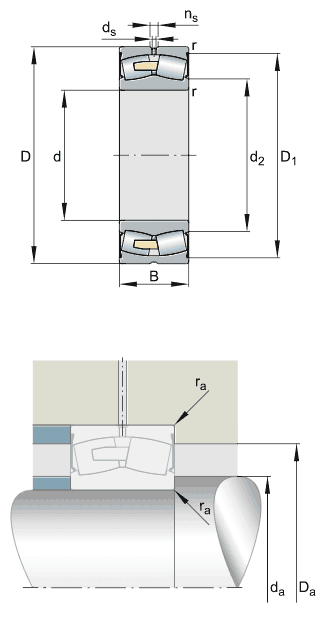

FAG 22232-E1A-XL-2RSR-M details
| Number | 22232-E1A-XL-2RSR-M | |
|---|---|---|
| Type |
Sealed spherical roller bearings Lip seal on both sides |
|
| d | 160mm | |
| D | 290mm | |
| B | 80mm | |
| D1 | 275mm | |
| Da max | 276mm | |
| da min | 174mm | |
| ds | 8mm | |
| ns | 15mm | |
| ra max | 2,5mm | |
| rmin | 3mm | |
| m | 23,3kg | Mass |
| Cr | 1080000N | Basic dynamic load rating, radial |
| C0r | 1300000N | Basic static load rating, radial |
| Cur | 128000N | Fatigue limit load, radial |
| nG | 7001/min | Limiting speed |
| e | 0,24 | |
| Y1 | 2,79 | |
| Y2 | 4,15 | |
| Y0 | 2,73 |
