FAG WS22209-E1-XL-2RSR Self-aligning roller bearing
Also known as : WS22209-E1-XL-2RSR
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 28 mm
- Basic dynamic load rating: 104 kN
- Basic static load rating: 99 kN
FAG WS22209-E1-XL-2RSR
FAG WS22209-E1-XL-2RSR details

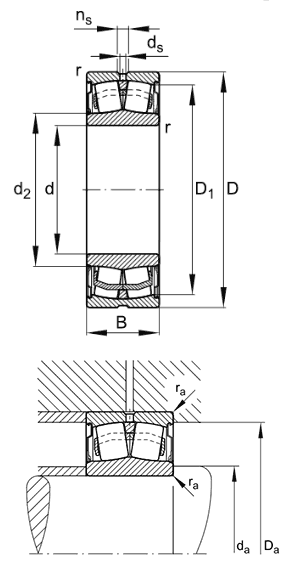

| Number | WS22209-E1-XL-2RSR | |
|---|---|---|
| Type |
Sealed spherical roller bearings lip seals on both sides |
|
| d | 45mm | |
| D | 85mm | |
| B | 28mm | |
| D1 | 77,8mm | |
| Da max | 78mm | |
| d2 | 51,4mm | |
| da min | 51,4mm | |
| ds | 3,2mm | |
| ns | 4,8mm | |
| ra max | 1mm | |
| rmin | 1,1mm | |
| m | 0,67kg | Mass |
| Cr | 104000N | Basic dynamic load rating, radial |
| C0r | 99000N | Basic static load rating, radial |
| Cur | 13000N | Fatigue limit load, radial |
| nG | 25501/min | Limiting speed |
| e | 0,25 | |
| Y1 | 2,74 | |
| Y2 | 4,08 | |
| Y0 | 2,68 |
