NSK 21318EAE4

NSK 21318EAE4 Self-aligning roller bearing

Also known as : 21318EAE4, 21318CC/W33

Inside Diameter: 90 mm
Outside Diameter: 190 mm
Width: 43 mm
Basic dynamic load rating: 415 kN
Basic static load rating: 450 kN

NSK 21318EAE4

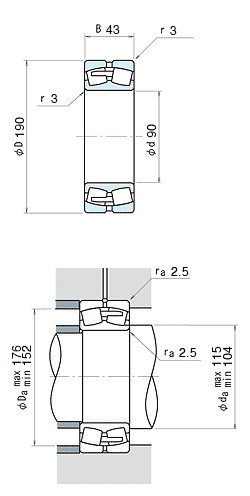

NSK 21318EAE4 details

model	21318EAE4
d	90 mm
D	190 mm
B	43.0 mm
r_min.	3.0 mm
C_r	415000 N 42000 kgf
C_0r	450000 N 46000 kgf
Limiting speeds	2800 min^-1 (Grease)
Limiting speeds	3600 min^-1 (Oil)
d_{a min}	104 mm
d_{a max}	115.000 mm
D_{a max}	176 mm
D_{a min}	152 mm
r_a	2.5 mm
Constant	0.24
Y₂	4.3 Axial Load Factors
Y₃	2.9 Axial Load Factors
Y₀	2.8 Axial Load Factors
Mass	6.10 kg (approx.)
