NSK 22212EAE4C3 Self-aligning roller bearing
Also known as : 22212EAE4C3, 22212CC/W33C3
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 28 mm
- Basic dynamic load rating: 178 kN
- Basic static load rating: 174 kN
NSK 22212EAE4C3

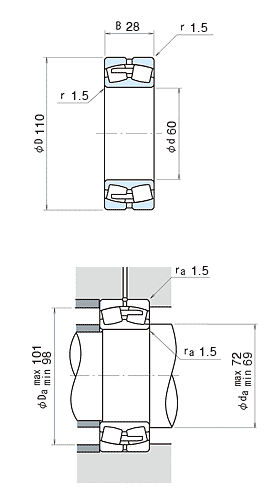

NSK 22212EAE4C3 details
| model | 22212EAE4C3 |
|---|---|
| d | 60 mm |
| D | 110 mm |
| B | 28.0 mm |
| rmin. | 1.5 mm |
| Cr |
178000 N 18100 kgf |
| C0r |
174000 N 17800 kgf |
| Limiting speeds | 4800 min-1 (Grease) |
| Limiting speeds | 6000 min-1 (Oil) |
| da min | 69 mm |
| da max | 72.000 mm |
| Da max | 101 mm |
| Da min | 98 mm |
| ra | 1.5 mm |
| Constant | 0.23 |
| Y2 | 4.4 Axial Load Factors |
| Y3 | 3 Axial Load Factors |
| Y0 | 2.9 Axial Load Factors |
| Mass | 1.10 kg (approx.) |
