NSK 22213EAE4 Self-aligning roller bearing
Also known as : 22213EAE4, 22213CC/W33
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 31 mm
- Basic dynamic load rating: 221 kN
- Basic static load rating: 230 kN
NSK 22213EAE4

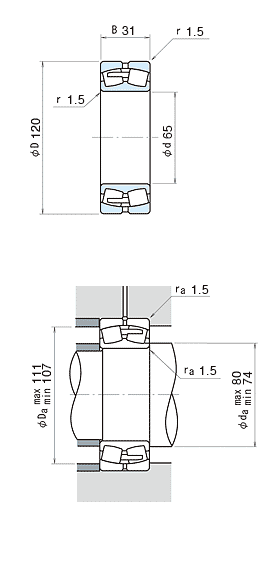

NSK 22213EAE4 details
| model | 22213EAE4 |
|---|---|
| d | 65 mm |
| D | 120 mm |
| B | 31.0 mm |
| rmin. | 1.5 mm |
| Cr |
221000 N 22500 kgf |
| C0r |
230000 N 23500 kgf |
| Limiting speeds | 4300 min-1 (Grease) |
| Limiting speeds | 5300 min-1 (Oil) |
| da min | 74 mm |
| da max | 80.000 mm |
| Da max | 111 mm |
| Da min | 107 mm |
| ra | 1.5 mm |
| Constant | 0.24 |
| Y2 | 4.2 Axial Load Factors |
| Y3 | 2.8 Axial Load Factors |
| Y0 | 2.7 Axial Load Factors |
| Mass | 1.51 kg (approx.) |
NSK 22213EAE4 bearing cross reference
24068EMD1
65 mmx 120 mmx 31 mm
232/560B
65 mmx 120 mmx 31 mm
241/560B
65 mmx 120 mmx 31 mm
231/560B
65 mmx 120 mmx 31 mm
23992
65 mmx 120 mmx 31 mm
23996
65 mmx 120 mmx 31 mm
240/560B
65 mmx 120 mmx 31 mm
232/530B
65 mmx 120 mmx 31 mm
23092B
65 mmx 120 mmx 31 mm
23096B
65 mmx 120 mmx 31 mm
230/560B
65 mmx 120 mmx 31 mm
