NSK 22215EAE4 Self-aligning roller bearing
Also known as : 22215EAE4, 22215CC/W33
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 238 kN
- Basic static load rating: 244 kN
NSK 22215EAE4

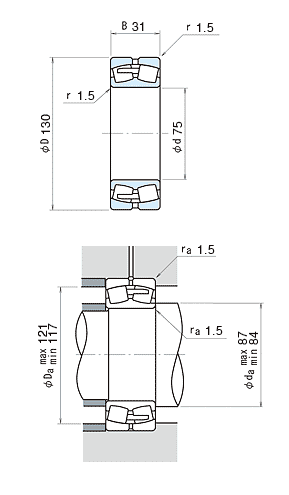

NSK 22215EAE4 details
| model | 22215EAE4 |
|---|---|
| d | 75 mm |
| D | 130 mm |
| B | 31.0 mm |
| rmin. | 1.5 mm |
| Cr |
238000 N 24200 kgf |
| C0r |
244000 N 24900 kgf |
| Limiting speeds | 4000 min-1 (Grease) |
| Limiting speeds | 5000 min-1 (Oil) |
| da min | 84 mm |
| da max | 87.000 mm |
| Da max | 121 mm |
| Da min | 117 mm |
| ra | 1.5 mm |
| Constant | 0.22 |
| Y2 | 4.5 Axial Load Factors |
| Y3 | 3 Axial Load Factors |
| Y0 | 3 Axial Load Factors |
| Mass | 1.64 kg (approx.) |
