NSK 22217EAE4 Self-aligning roller bearing
Also known as : 22217EAE4, 22217CC/W33
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 36 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 325 kN
NSK 22217EAE4

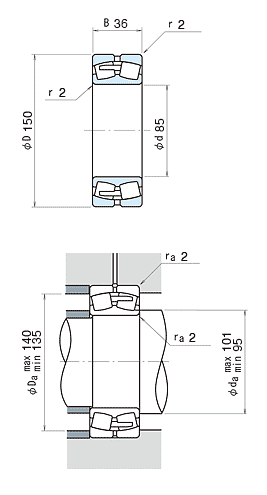

NSK 22217EAE4 details
| model | 22217EAE4 |
|---|---|
| d | 85 mm |
| D | 150 mm |
| B | 36.0 mm |
| rmin. | 2.0 mm |
| Cr |
310000 N 32000 kgf |
| C0r |
325000 N 33500 kgf |
| Limiting speeds | 3400 min-1 (Grease) |
| Limiting speeds | 4300 min-1 (Oil) |
| da min | 95 mm |
| da max | 101.000 mm |
| Da max | 140 mm |
| Da min | 135 mm |
| ra | 2.0 mm |
| Constant | 0.22 |
| Y2 | 4.6 Axial Load Factors |
| Y3 | 3.1 Axial Load Factors |
| Y0 | 3 Axial Load Factors |
| Mass | 2.54 kg (approx.) |
