NSK 22220EAE4C3

NSK 22220EAE4C3 Self-aligning roller bearing

Also known as : 22220EAE4C3, 22220CC/W33

Inside Diameter: 100 mm
Outside Diameter: 180 mm
Width: 46 mm
Basic dynamic load rating: 455 kN
Basic static load rating: 490 kN

NSK 22220EAE4C3

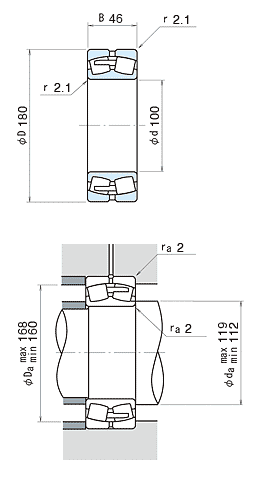

NSK 22220EAE4C3 details

model	22220EAE4C3
d	100 mm
D	180 mm
B	46.0 mm
r_min.	2.1 mm
C_r	455000 N 46500 kgf
C_0r	490000 N 50000 kgf
Limiting speeds	2800 min^-1 (Grease)
Limiting speeds	3600 min^-1 (Oil)
d_{a min}	112 mm
d_{a max}	119.000 mm
D_{a max}	168 mm
D_{a min}	160 mm
r_a	2.0 mm
Constant	0.24
Y₂	4.3 Axial Load Factors
Y₃	2.9 Axial Load Factors
Y₀	2.8 Axial Load Factors
Mass	4.84 kg (approx.)
