NSK 22224EAE4C3 Self-aligning roller bearing
Also known as : 22224EAE4C3, 22224CC/W33C3
- Inside Diameter: 120 mm
- Outside Diameter: 215 mm
- Width: 58 mm
- Basic dynamic load rating: 685 kN
- Basic static load rating: 765 kN
NSK 22224EAE4C3

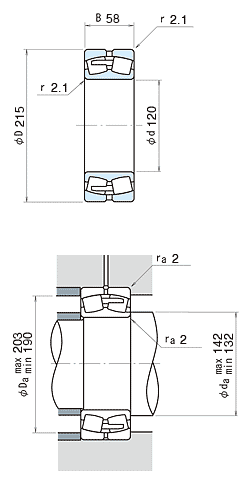

NSK 22224EAE4C3 details
| model | 22224EAE4C3 |
|---|---|
| d | 120 mm |
| D | 215 mm |
| B | 58.0 mm |
| rmin. | 2.1 mm |
| Cr |
685000 N 70000 kgf |
| C0r |
765000 N 78000 kgf |
| Limiting speeds | 2400 min-1 (Grease) |
| Limiting speeds | 3000 min-1 (Oil) |
| da min | 132 mm |
| da max | 142.000 mm |
| Da max | 203 mm |
| Da min | 190 mm |
| ra | 2.0 mm |
| Constant | 0.25 |
| Y2 | 3.9 Axial Load Factors |
| Y3 | 2.7 Axial Load Factors |
| Y0 | 2.6 Axial Load Factors |
| Mass | 8.80 kg (approx.) |
