NSK 22226CAME4C3 Self-aligning roller bearing
Also known as : 22226CAME4C3, 22226CC/W33C3
- Inside Diameter: 130 mm
- Outside Diameter: 230 mm
- Width: 64 mm
- Basic dynamic load rating: 820 kN
- Basic static load rating: 940 kN
NSK 22226CAME4C3

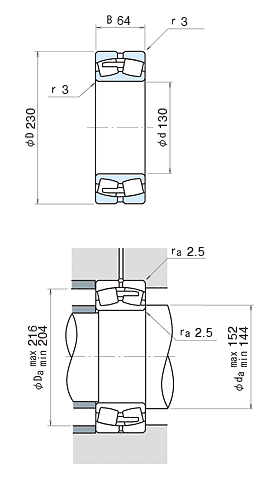

NSK 22226CAME4C3 details
| model | 22226CAME4C3 |
|---|---|
| d | 130 mm |
| D | 230 mm |
| B | 64.0 mm |
| rmin. | 3.0 mm |
| Cr |
820000 N 83500 kgf |
| C0r |
940000 N 96000 kgf |
| Limiting speeds | 2200 min-1 (Grease) |
| Limiting speeds | 2600 min-1 (Oil) |
| da min | 144 mm |
| da max | 152.000 mm |
| Da max | 216 mm |
| Da min | 204 mm |
| ra | 2.5 mm |
| Constant | 0.26 |
| Y2 | 3.8 Axial Load Factors |
| Y3 | 2.6 Axial Load Factors |
| Y0 | 2.5 Axial Load Factors |
| Mass | 11.00 kg (approx.) |
