NSK 22244CAE4 Self-aligning roller bearing
Also known as : 22244CAE4, 22244CC/W33
- Inside Diameter: 220 mm
- Outside Diameter: 400 mm
- Width: 108 mm
- Basic dynamic load rating: 1570 kN
- Basic static load rating: 2430 kN
NSK 22244CAE4

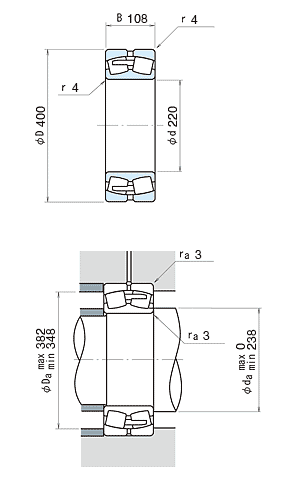

NSK 22244CAE4 details
| model | 22244CAE4 |
|---|---|
| d | 220 mm |
| D | 400 mm |
| B | 108.0 mm |
| rmin. | 4.0 mm |
| Cr |
1570000 N 160000 kgf |
| C0r |
2430000 N 247000 kgf |
| Limiting speeds | 850 min-1 (Grease) |
| Limiting speeds | 1000 min-1 (Oil) |
| da min | 238 mm |
| da max | 0.000 mm |
| Da max | 382 mm |
| Da min | 348 mm |
| ra | 3.0 mm |
| Constant | 0.27 |
| Y2 | 3.7 Axial Load Factors |
| Y3 | 2.5 Axial Load Factors |
| Y0 | 2.4 Axial Load Factors |
| Mass | 59.00 kg (approx.) |
