NSK 22316EAE4C3 Self-aligning roller bearing
Also known as : 22316EAE4C3, 22316CC/W33C3
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 58 mm
- Basic dynamic load rating: 540 kN
- Basic static load rating: 565 kN
NSK 22316EAE4C3

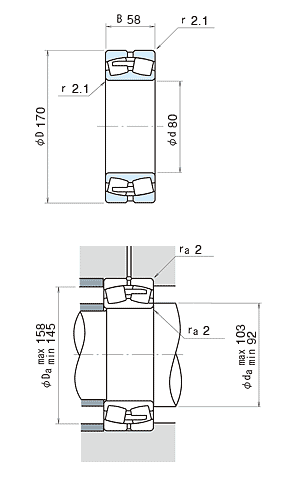

NSK 22316EAE4C3 details
| model | 22316EAE4C3 |
|---|---|
| d | 80 mm |
| D | 170 mm |
| B | 58.0 mm |
| rmin. | 2.1 mm |
| Cr |
540000 N 55000 kgf |
| C0r |
565000 N 58000 kgf |
| Limiting speeds | 2600 min-1 (Grease) |
| Limiting speeds | 3400 min-1 (Oil) |
| da min | 92 mm |
| da max | 103.000 mm |
| Da max | 158 mm |
| Da min | 145 mm |
| ra | 2.0 mm |
| Constant | 0.33 |
| Y2 | 3 Axial Load Factors |
| Y3 | 2 Axial Load Factors |
| Y0 | 2 Axial Load Factors |
| Mass | 6.23 kg (approx.) |
