NSK 22318EAE4 Self-aligning roller bearing
Also known as : 22318EAE4, 22318CC/W33
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 64 mm
- Basic dynamic load rating: 665 kN
- Basic static load rating: 705 kN
NSK 22318EAE4

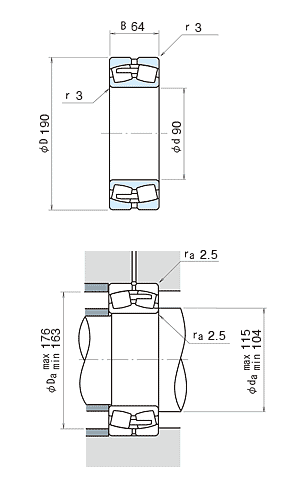

NSK 22318EAE4 details
| model | 22318EAE4 |
|---|---|
| d | 90 mm |
| D | 190 mm |
| B | 64.0 mm |
| rmin. | 3.0 mm |
| Cr |
665000 N 68000 kgf |
| C0r |
705000 N 72000 kgf |
| Limiting speeds | 2400 min-1 (Grease) |
| Limiting speeds | 3000 min-1 (Oil) |
| da min | 104 mm |
| da max | 115.000 mm |
| Da max | 176 mm |
| Da min | 163 mm |
| ra | 2.5 mm |
| Constant | 0.33 |
| Y2 | 3.1 Axial Load Factors |
| Y3 | 2.1 Axial Load Factors |
| Y0 | 2 Axial Load Factors |
| Mass | 8.56 kg (approx.) |
