NSK 23026CDE4 Self-aligning roller bearing
Also known as : 23026CDE4C3, 23026CC/W33C3
- Inside Diameter: 130 mm
- Outside Diameter: 200 mm
- Width: 52 mm
- Basic dynamic load rating: 400 kN
- Basic static load rating: 655 kN
NSK 23026CDE4

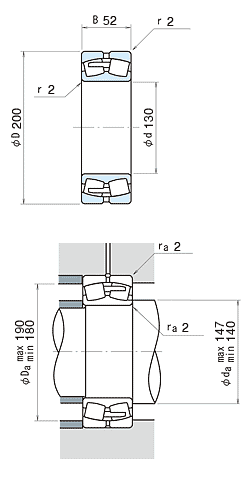

NSK 23026CDE4 details
| model | 23026CDE4C3 |
|---|---|
| d | 130 mm |
| D | 200 mm |
| B | 52.0 mm |
| rmin. | 2.0 mm |
| Cr |
400000 N 40500 kgf |
| C0r |
655000 N 67000 kgf |
| Limiting speeds | 1700 min-1 (Grease) |
| Limiting speeds | 2000 min-1 (Oil) |
| da min | 140 mm |
| da max | 147.000 mm |
| Da max | 190 mm |
| Da min | 180 mm |
| ra | 2.0 mm |
| Constant | 0.23 |
| Y2 | 4.3 Axial Load Factors |
| Y3 | 2.9 Axial Load Factors |
| Y0 | 2.8 Axial Load Factors |
| Mass | 5.98 kg (approx.) |
