NSK 23028CAME4 Self-aligning roller bearing
Also known as : 23028CAME4, 23028CC/W33
- Inside Diameter: 140 mm
- Outside Diameter: 210 mm
- Width: 53 mm
- Basic dynamic load rating: 420 kN
- Basic static load rating: 715 kN
NSK 23028CAME4

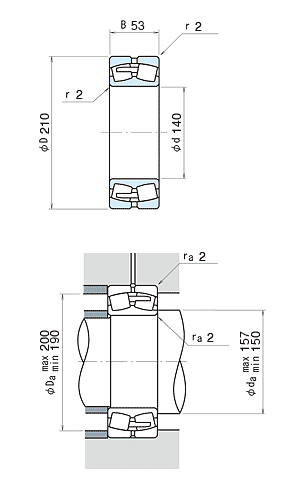

NSK 23028CAME4 details
| model | 23028CAME4 |
|---|---|
| d | 140 mm |
| D | 210 mm |
| B | 53.0 mm |
| rmin. | 2.0 mm |
| Cr |
420000 N 43000 kgf |
| C0r |
715000 N 73000 kgf |
| Limiting speeds | 1600 min-1 (Grease) |
| Limiting speeds | 1900 min-1 (Oil) |
| da min | 150 mm |
| da max | 157.000 mm |
| Da max | 200 mm |
| Da min | 190 mm |
| ra | 2.0 mm |
| Constant | 0.22 |
| Y2 | 4.5 Axial Load Factors |
| Y3 | 3 Axial Load Factors |
| Y0 | 2.9 Axial Load Factors |
| Mass | 6.49 kg (approx.) |
NSK 23028CAME4 bearing cross reference
24068EMD1
140 mmx 210 mmx 53 mm
232/560B
140 mmx 210 mmx 53 mm
241/560B
140 mmx 210 mmx 53 mm
231/560B
140 mmx 210 mmx 53 mm
23992
140 mmx 210 mmx 53 mm
23996
140 mmx 210 mmx 53 mm
240/560B
140 mmx 210 mmx 53 mm
232/530B
140 mmx 210 mmx 53 mm
23092B
140 mmx 210 mmx 53 mm
23096B
140 mmx 210 mmx 53 mm
230/560B
140 mmx 210 mmx 53 mm
