SKF 22318E/C3 Self-aligning roller bearing
Also known as : 22318E/C3, 22318-E1-C3
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 64 mm
- Basic dynamic load rating: 637 kN
- Basic static load rating: 695 kN
SKF 22318E/C3

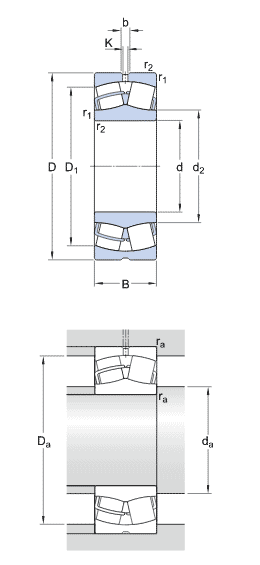

SKF 22318E/C3 details
| model | 22318E/C3 |
|---|---|
| d | 90 mm |
| D | 190 mm |
| B | 64 mm |
| d2 | 113 mm |
| D1 | 161 mm |
| b | 11.1 mm |
| K | 6 mm |
| r1,2 min. | 3 mm |
| da min | 104 mm |
| Da max | 176 mm |
| ra max | 2.5 mm |
| C | 637 kN, Basic dynamic load rating |
| C0 | 695 kN, Basic static load rating |
| Pu | 67 kN, Fatigue load limit |
| Reference speed | 2600 r/min |
| Limiting speed | 3600 r/min |
| e | 0.33, Calculation factor |
| Y1 | 2, Calculation factor |
| Y2 | 3, Calculation factor |
| Y0 | 2, Calculation factor |
| Mass | 9.05 kg |
