SKF 22210EK Self-aligning roller bearing
Also known as : 22210EK, 22210-E1-K
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 23 mm
- Basic dynamic load rating: 107 kN
- Basic static load rating: 108 kN
SKF 22210EK

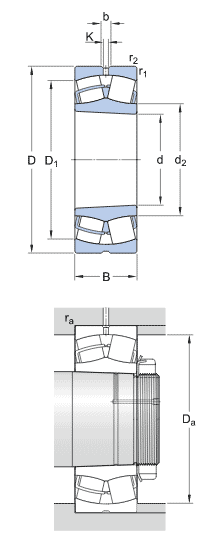

SKF 22210EK details
| model | 22210EK |
|---|---|
| d | 50 mm |
| D | 90 mm |
| B | 23 mm |
| d2 | 60 mm |
| D1 | 79 mm |
| b | 5.5 mm |
| K | 3 mm |
| r1,2 min. | 1.1 mm |
| Tapered bore, taper 1:12 | |
| Da max | 83 mm |
| ra max | 1 mm |
| C | 107 kN, Basic dynamic load rating |
| C0 | 108 kN, Basic static load rating |
| Pu | 12 kN, Fatigue load limit |
| Reference speed | 7000 r/min |
| Limiting speed | 9500 r/min |
| e | 0.24, Calculation factor |
| Y1 | 2.8, Calculation factor |
| Y2 | 4.2, Calculation factor |
| Y0 | 2.8, Calculation factor |
| α | 130 °, Recommended lock nut tightening angle |
| Mass | 0.62 kg |
