SKF 22211EK Self-aligning roller bearing
Also known as : 22211EK/C3, 22211-E1-K-C3
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 129 kN
- Basic static load rating: 127 kN
SKF 22211EK

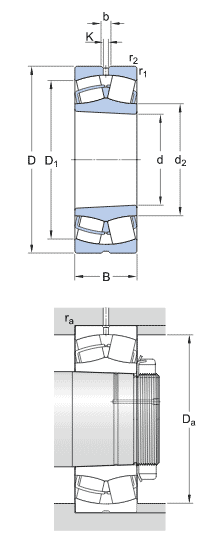

SKF 22211EK details
| model | 22211EK/C3 |
|---|---|
| d | 55 mm |
| D | 100 mm |
| B | 25 mm |
| d2 | 65.3 mm |
| D1 | 88 mm |
| b | 6 mm |
| K | 3 mm |
| r1,2 min. | 1.5 mm |
| Tapered bore, taper 1:12 | |
| Da max | 91 mm |
| ra max | 1.5 mm |
| C | 129 kN, Basic dynamic load rating |
| C0 | 127 kN, Basic static load rating |
| Pu | 14 kN, Fatigue load limit |
| Reference speed | 6300 r/min |
| Limiting speed | 8500 r/min |
| e | 0.24, Calculation factor |
| Y1 | 2.8, Calculation factor |
| Y2 | 4.2, Calculation factor |
| Y0 | 2.8, Calculation factor |
| α | 115 °, Recommended lock nut tightening angle |
| Mass | 0.82 kg |
SKF 22211EK bearing cross reference
24068EMD1
55 mmx 100 mmx 25 mm
232/560B
55 mmx 100 mmx 25 mm
241/560B
55 mmx 100 mmx 25 mm
231/560B
55 mmx 100 mmx 25 mm
23992
55 mmx 100 mmx 25 mm
23996
55 mmx 100 mmx 25 mm
240/560B
55 mmx 100 mmx 25 mm
232/530B
55 mmx 100 mmx 25 mm
23092B
55 mmx 100 mmx 25 mm
23096B
55 mmx 100 mmx 25 mm
230/560B
55 mmx 100 mmx 25 mm
