SKF 240/500ECA/W33 Self-aligning roller bearing
Also known as : 240/500ECA/W33, 240/500-E1
- Inside Diameter: 500 mm
- Outside Diameter: 720 mm
- Width: 218 mm
- Basic dynamic load rating: 5777 kN
- Basic static load rating: 11000 kN
SKF 240/500ECA/W33

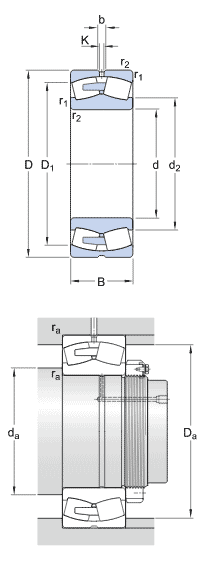

SKF 240/500ECA/W33 details
| model | 240/500ECA/W33 |
|---|---|
| d | 500 mm |
| D | 720 mm |
| B | 218 mm |
| d2 | 566 mm |
| D1 | 644 mm |
| b | 22.3 mm |
| K | 12 mm |
| r1,2 min. | 6 mm |
| da min | 523 mm |
| Da max | 697 mm |
| ra max | 5 mm |
| C | 5777 kN, Basic dynamic load rating |
| C0 | 11000 kN, Basic static load rating |
| Pu | 735 kN, Fatigue load limit |
| Reference speed | 430 r/min |
| Limiting speed | 700 r/min |
| e | 0.26, Calculation factor |
| Y1 | 2.6, Calculation factor |
| Y2 | 3.9, Calculation factor |
| Y0 | 2.5, Calculation factor |
| Mass | 295 kg |
