SKF 22328CCJA/W33VA405 Self-aligning roller bearing
Also known as : 22328CCJA/W33VA405, 22328-E1
- Inside Diameter: 140 mm
- Outside Diameter: 300 mm
- Width: 102 mm
- Basic dynamic load rating: 1357 kN
- Basic static load rating: 1560 kN
SKF 22328CCJA/W33VA405

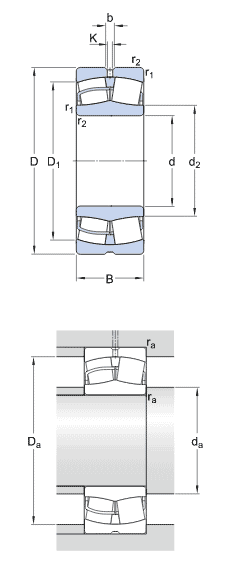

SKF 22328CCJA/W33VA405 details
| model | 22328CCJA/W33VA405 |
|---|---|
| d | 140 mm |
| D | 300 mm |
| B | 102 mm |
| d2 | 175 mm |
| D1 | 247 mm |
| b | 16.7 mm |
| K | 9 mm |
| r1,2 min. | 4 mm |
| da min | 157 mm |
| Da max | 283 mm |
| ra max | 3 mm |
| C | 1357 kN, Basic dynamic load rating |
| C0 | 1560 kN, Basic static load rating |
| Pu | 132 kN, Fatigue load limit |
| Reference speed | 1700 r/min |
| Limiting speed | 2200 r/min |
| e | 0.35, Calculation factor |
| Y1 | 1.9, Calculation factor |
| Y2 | 2.9, Calculation factor |
| Y0 | 1.8, Calculation factor |
| Mass | 36.5 kg |
